Trane launches -20°F heat pump five years after DOE's cold-climate spec

Trane introduced the 20 TruComfort Variable Speed Cold Climate Heat Pump with WeatherGuard on September 24, 2026, in a launch post on its residential site. The post says the unit comes in 3-ton, 4-ton and 5-ton sizes, that its operating range is -20°F to 115°F, and that "Depending on size, it can deliver 100% to 107% of rated heating capacity at 5°F and still provide substantial capacity at -20°F." A table the post attributes to psychrometric chamber testing puts the 3-ton model at 107% of rated 47°F heating capacity at 5°F and 85% at -20°F, the 4-ton at 100% and 67%, and the two 5-ton models at 87% and 53% (the X60) and 100% and 70% (the X61), rated with Trane's 5TEMC air handler. The product page lists R-454B as the refrigerant.

"Trane has not yet disclosed the system's coefficient of performance (COP), heating seasonal performance factor 2 (HSPF2), or seasonal energy efficiency ratio 2 (SEER2) ratings," pv magazine wrote on September 25. The post does not list them, but the product page links a federal EnergyGuide label for each model, and the labels carry SEER2 and HSPF2 of 20.0 and 10.3 for the 5TCV0X36A1, the 3-ton, 19.0 and 9.7 for the 5TCV0X48A1, 19.2 and 9.4 for the 5TCV0X60A1 and 18.0 and 10.0 for the 5TCV0X61A1.

Five years from a DOE specification

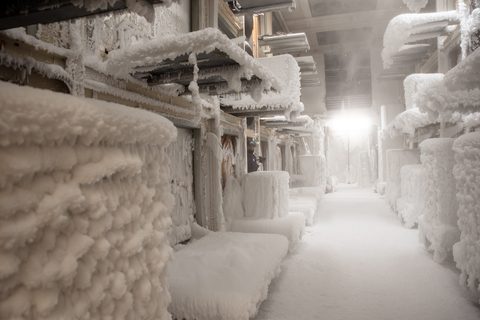

Ray Rite, the principal engineer who led the technology project, gives the timeline: DOE's challenge kicked off in November 2021; Trane's design was completed and tested in-house in Q1 2022; "Performance was independently confirmed at Oak Ridge National Labs in November of 2022"; a field trial in Boise, Idaho was commissioned in December 2022 and ran until July 2024 "with no major issues"; and the new-product-development project kicked off in 2023. Yisarai Valbuena Sanchez, a senior engineer, says the prototype "exceeded the challenge specifications of operating down to -15°F, and stayed online at -23°F." Trane Technologies' November 3, 2022 release described the same lab result against a different number: the prototype "performed in temperatures as low as negative 23 degrees Fahrenheit, surpassing the mandatory negative 20 degrees Fahrenheit DOE requirement." The photo above, from that release, shows the Systems Extreme Environmental Test room at Trane's Tyler, Texas plant, where it says the prototype's foundation was tested.

Both numbers are in DOE's challenge specification, Version 1.2, dated September 24, 2021, five years to the day before Trane's launch post. The challenge has two segments, one for a heat pump optimized for 5°F and one optimized for -15°F; manufacturers could enter either or both, although a heat pump in the -15°F segment had to meet both segments' requirements. The -15°F segment, which the specification marks optional, has two items: heating capacity and COP at -15°F are measured and reported, and the low-temperature compressor cut-out is no higher than -20°F with a cut-in no higher than -15°F. The 5°F segment has three: a ratio of maximum heating capacity at 5°F to nominal heating capacity at 47°F of at least 1.0; a COP at 5°F of at least 2.4, or 2.1 above 48,000 Btu/h, with the bands set by the Appendix M1 A2 cooling-test capacity for a heating-and-cooling heat pump; and a cut-out no higher than -10°F with a cut-in no higher than -5°F. Separate from both segments, the seasonal heating requirements include an HSPF2 of at least 8.5 in Region V, stated in the summary table with capacity and COP adjustment factors, for both northern triple capacity and variable-speed units, plus a 30% turndown at 47°F for variable-speed units and electric heat staging; the summary table's additional requirements are electric heat staging, a refrigerant GWP no greater than 750 on the AR4 100-year basis, and four sections of the ENERGY STAR Central Air Conditioner and Heat Pump specification.

The specification said the challenge "would develop, test, and commercialize the CCHP products by 2024," and the timeline graphic on DOE's challenge page reads "Product Prototype (Late 2021 / Early 2022), Lab Testing (2022), Field Testing (Winter 2022-2023 or 2023-2024), Deployment Programs / Commercialization (2024)." The post says the final design "can achieve a capacity up to 107% at 5°F, meeting the original challenge specification." Against the post's own table, the 3-ton, 4-ton and X61 models sit at or above the 100% ratio and the X60 at 87%, by The Duck Curve's comparison, which the post does not make: Trane's figures are delivered-capacity percentages rated with its 5TEMC air handler, while the specification's ratio is maximum heating capacity at its H4_Max/Cold verification point over the H1N nominal, and Trane has published neither test point. That reaches only the first of the segment's three items; Trane has published no COP at 5°F and no cut-out or cut-in temperatures, so pv magazine's COP question stands. The labels state no climate region and say the heating rating varies slightly by region and depends on the installed coil; the challenge's 8.5 is for Region V under Appendix M1 with adjustment factors, a different basis, and this article draws no conclusion on whether the unit meets it.

The challenge page lists eight manufacturer partners, including Trane Technologies, pledging to work with DOE toward a model that meets or exceeds the specifications and timeline, to take part in working group meetings, and to share quarterly updates on development progress including preliminary results, product and testing challenges and expected milestone timelines.

Field trials and sizing

Trane says nine units were field-tested in Minnesota, Montana, New York, Pennsylvania, Wisconsin and Texas over two winters and a second summer, with more than 36,900 hours of runtime, more than 18,300 in heating mode, at sites with minimum ambient temperatures from -21°F to 5°F. During the January 2026 cold front, per the post, a 5TCV0X60A1 in La Crosse, Wisconsin met the setpoint with no supplemental heat as low as -21°F, and a 5TCV0X61A1 there did so as low as -10°F, after which supplemental heat also came on while the heat pump kept running. The units were installed at the homes of Trane Technologies employees and in-network dealer partners; the one customer quoted, Keith Novak, is a Trane compressor engineer.

The post says another Trane Technologies employee saw the compressor keep running as the primary heat source below -13°F with no loss of comfort, in a home converted from a gas furnace to all-electric with the CCHP and an air handler.

Chelsea Hudson, the product manager, says the unit has more nominal heating capacity relative to nominal cooling capacity, and Valbuena Sanchez recommends sizing it for the heating load. The post's model table has three unlabeled capacity columns; pv magazine reads the first two as nominal cooling and heating, 26,200 and 33,200 Btu/h for the 3-ton. The post names ten states as good examples of where the product is best suited, Maine, Minnesota and Wisconsin among them, and says Hudson sees a strong fit in parts of seven more, including Massachusetts, where two utilities' optional heat pump rates add a discounted winter transmission charge for the 2026-2027 heating season. She says it can serve as primary heat with an air handler or in a dual-fuel pairing with a furnace, for which the cases Trane lists include winters regularly below 5°F for extended periods.
